Foxvoid Engine

C++20 Raylib Python License

Foxvoid Engine is a lightweight, data-driven 2D game engine build with C++ and Raylib, featuring an integrated ImGui Editor and a powerful Python Scripting layer. Designed for rapid prototyping and indie game development, it provides a seamless bridge between high-performance native systems and flexible gameplay scripting.

Key Features

  • Entity Component System (ECS): A robust, hierarchy-based (Parent/Child) architecture managing GameObjects and modular components.
  • Integrated Editor: Fully featured visual workspace built with ImGui. Includes a Scene View, Hierarchy Panel (with drag-and-drop), Inspector, Tile Palette, and a Performance Profiler.
  • Undo/Redo Command History: A non-destructive workflow in the editor using the Command pattern for safe experimentation.
  • Native Python Scripting: Write gameplay logic in Python via pybind11. Python scripts natively access the C++ ECS, physics, audio, and rendering systems with zero overhead.
  • 2D Physics & Raycasting: Custom AABB collision resolution, kinematic/dynamic rigidbodies, collision normals, and global line-of-sight raycasting.
  • Tilemaps & Animation: Built-in tools for drawing multi-layered physics-enabled tile worlds and managing sprite sheet animations via Animator2d.
  • UI & Audio Subsystems: Create interactive HUDs with Button and TextRenderer, and manage SFX/Music through the AudioSource component.
  • Data-Driven: Scenes and Prefabs are fully serialized to JSON, making version control and content management effortless.

Showcase

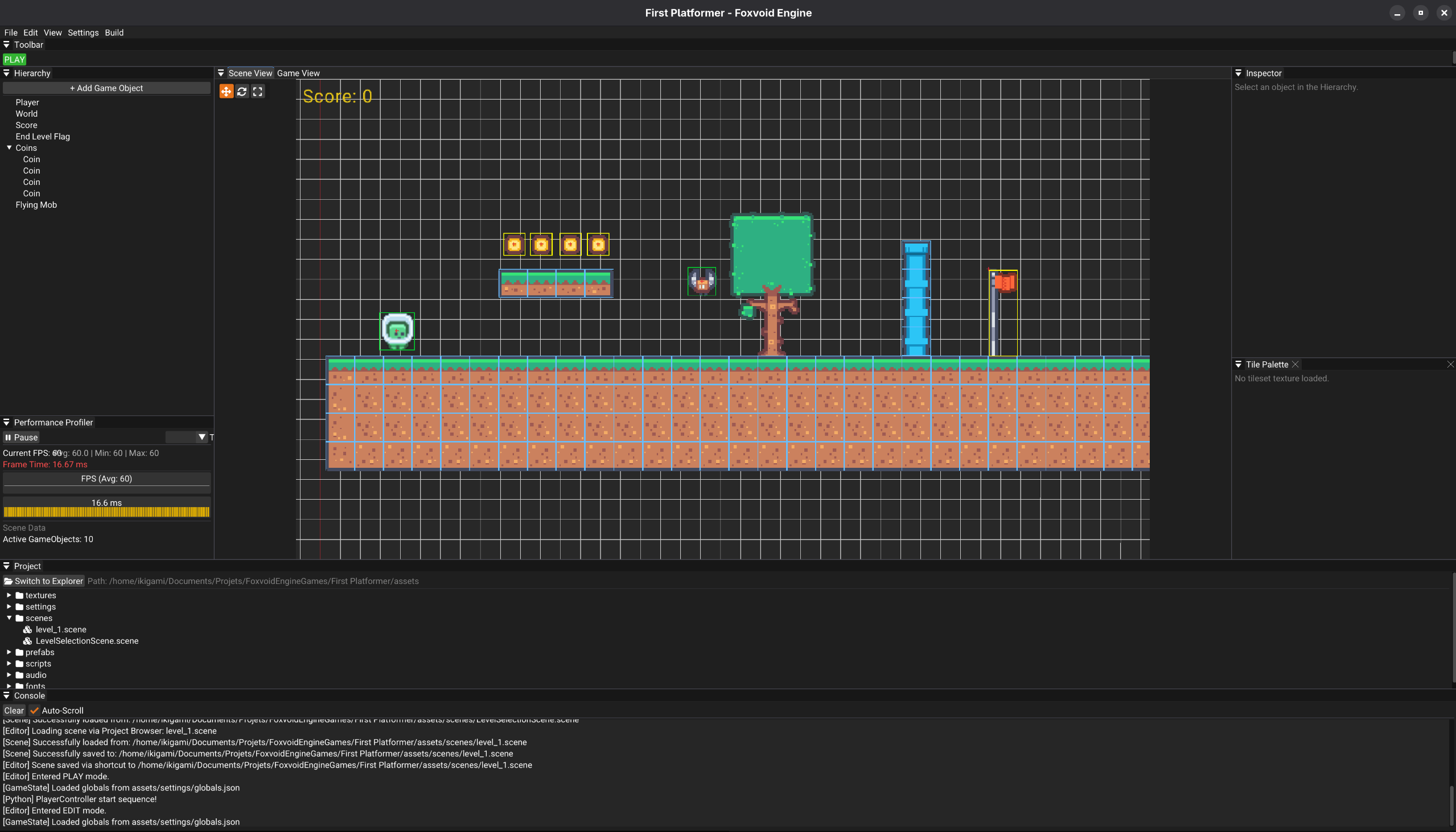

Editor Screenshot

Python Scripting API

Foxvoid exposes a highly expressive Python API (complete with .pyi type hinting for IDE autocompletion). You can attach logic, handle inputs, cast rays, and play sounds natively.

Available Native Components

  • Transform / Physics: Transform2d, RigidBody2d, RectCollider
  • Rendering: SpriteRenderer, SpriteSheetRenderer, ShapeRenderer, TextRenderer, Camera2d
  • Animation / Level: Animation2d, Animator2d, TileMap
  • UI / Audio: Button, AudioSource

"Hello World" Player Controller

Here is an example of a Python script interacting with the engine's Input, Physics, and Audio systems:

from foxvoid import *
from typing import Optional

class PlayerController(Component):
    def __init__(self):
        super().__init__()
        self.speed = 400.0
        self.jump_force = -700.0

        self._rb: Optional[RigidBody2d] = None
        self._audio: Optional[AudioSource] = None

    def start(self):
        # Cache native C++ components
        self._rb = self.game_object.get_component(RigidBody2d)
        self._audio = self.game_object.get_component(AudioSource)

        if self._audio:
            self._audio.load_sfx("jump", "assets/sounds/jump.wav")

    def update(self, delta_time: float):
        if not self._rb: return

        # Horizontal Movement
        if Input.is_action_down("walk_right"):
            self._rb.velocity.x = self.speed
        elif Input.is_action_down("walk_left"):
            self._rb.velocity.x = -self.speed
        else:
            self._rb.velocity.x = 0.0

        # Jumping & Audio
        if Input.is_action_pressed("jump") and self._rb.is_grounded:
            self._rb.velocity.y = self.jump_force
            if self._audio:
                self._audio.play_sfx("jump")

Architecture Overview

The codebase is strictly organized to separate engine core loops, editor tools, and rendering subsystems

src/
├── audio/      # SFX and Music management (AudioSource)
├── core/       # Engine loop, AssetManager, InputManager, GameState
├── editor/     # ImGui Panels (Hierarchy, Inspector, TilePalette) & Command History
├── graphics/   # Sprite, Camera, TileMap, and Animator2d implementations
├── gui/        # Screen-space HUD elements (Buttons, TextRenderer)
├── physics/    # Custom AABB engine, Colliders, Raycasting, and Transform math
├── scripting/  # Pybind11 C++ to Python bindings and ScriptEngine
└── world/      # ECS base (Scene, GameObject, ComponentRegistry)

Getting Started

Prerequisites

To build Foxvoid Engine, you will need: - CMake (v3.15+) - A c++20 compatible compiler (GCC, Clang, or MSVC) - Python 3.x (with development headers installed) - Dependencies handled automatically: Raylib, Pybind11, ImGui, ImGuizmo, nlohmann/json.

Building from Source (Linux / macOS / Window)

# Clone the repository
git clone [https://github.com/yourusername/FoxvoidEngine.git](https://github.com/yourusername/FoxvoidEngine.git)
cd FoxvoidEngine

# Create a build directory
mkdir build && cd build

# Generate project files and compile
cmake ..
cmake --build.

To run the engine:

# Linux / macOS
./FoxvoidEngine

# Windows
.\Debug\FoxvoidEngine.exe

License

This project is licensed under the zlib License - see the LICENSE file for details.
